ID461.3

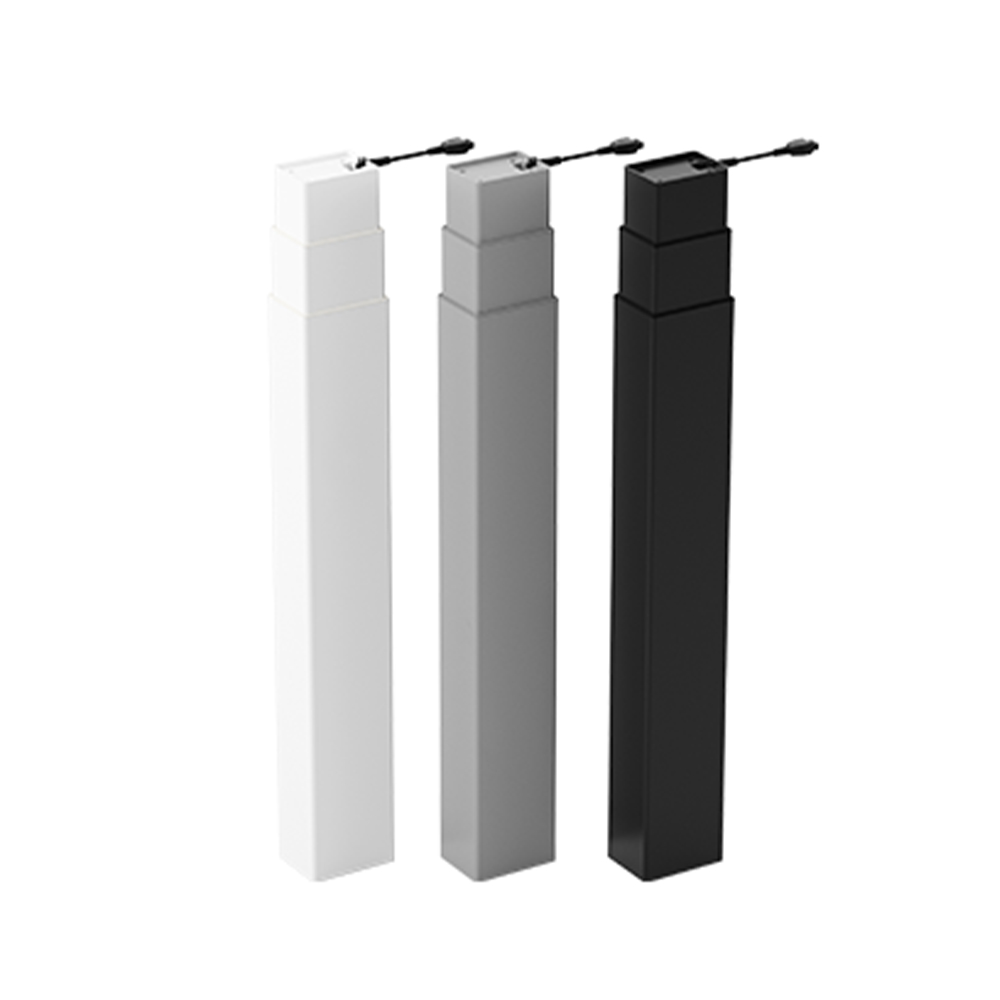

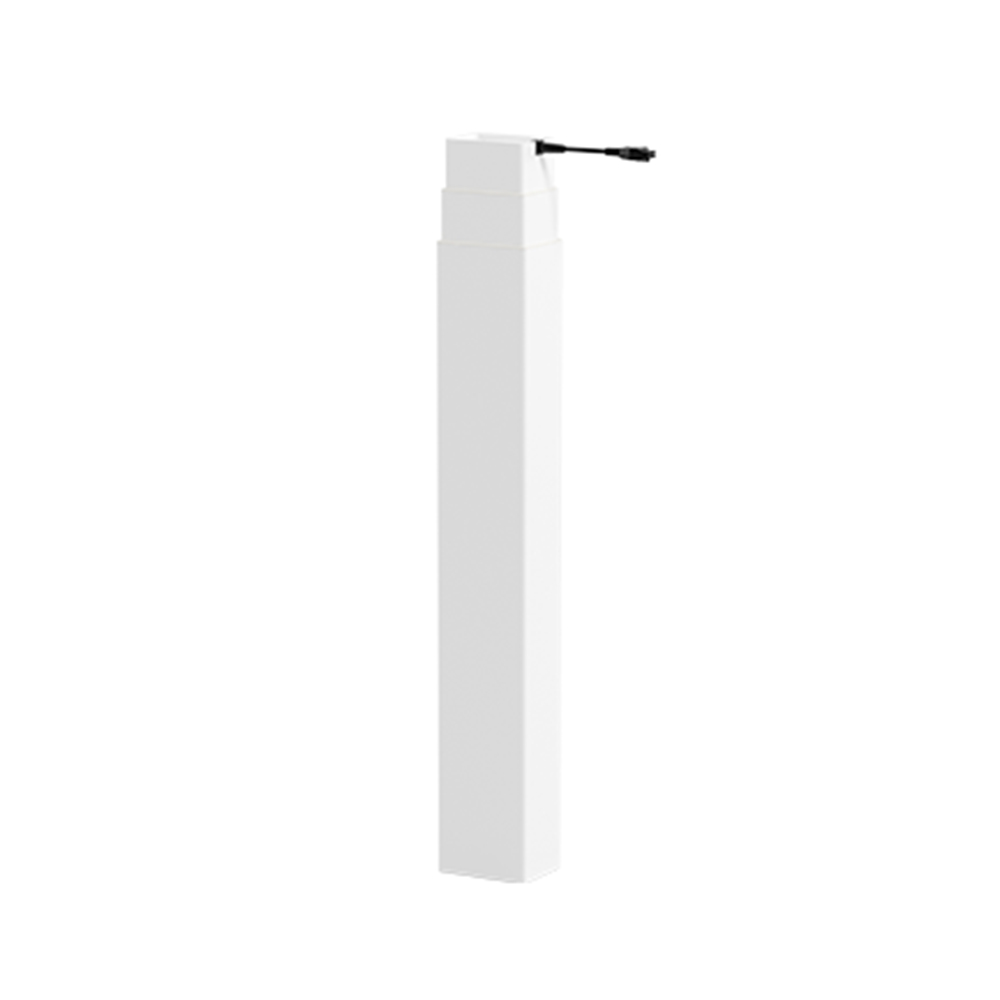

Rectangular High-End Lifting Columns

Thanks to their inline design, the ID461.3 lifting columns offer a wide range of options for demanding designs. They can be easily integrated into a wide variety of table frame constructions. The use of low-backlash sliding guides in smooth profiles without visible indentations or functional openings provides for the expected convenience of height adjustments along with an elegant appearance. These lifting columns are suited for constructing stable table systems according to EN 527 and BIFMA X5.5.

HIGH-END DRIVE TECHNOLOGY
Equipped with powerful, maintenance-free 24-volt DC motors and two Hall sensors, the ID461.3 lifting columns generate a pushing force of up to 800 N – with whisper-quiet operations. The ID461.3 has a very low installation dimension of 560 mm and a standard-compliant stroke length of 650 mm. These lifting columns provide an exceptional level of practical versatility. The inner column profiles always move synchronously. The ID461.3 is also compatible with OKIN’s proven DB02, DB03, SMARTneo and COMPACTeco control units. These can be programmed according to individual customer requirements and feature the ISP intelligent system protection.

DATA SHEET
Download

Read more at the DewertOkin website
