SQUARE TWO-STAGE LIFTING COLUMNS FROM THE DD SERIES

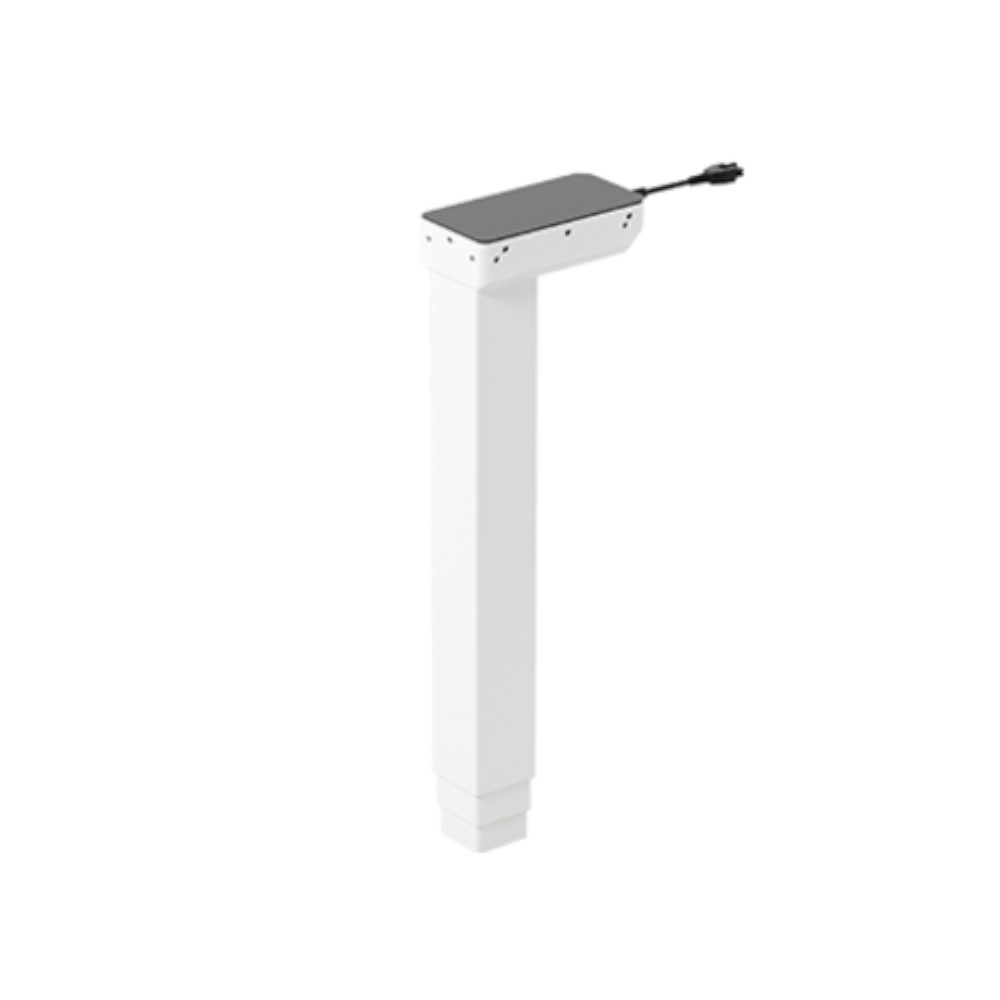

Powerful lifting columns are the foundation of modern ergonomic working environments. OKIN provides functional lifting columns from its DD series to ensure convenient height adjustments. The DD472.3 is a square two-stage version of the proven OKIN lifting column systems. They have low-backlash sliding guides and an inverted push-out direction from top to bottom, which makes them particularly stable. This drive solution has an elegant design and a smooth profile without visible indentations or functional openings. This design allows it to easily be integrated into a wide variety of table frame constructions. These lifting columns are suited for constructing stable table systems according to EN 527 and BIFMA X5.5.
ADAPTABLE, COMPACT AND POWERFUL
The DD472.3 features many additional advantages. The maintenance-free 24-volt DC motors with two Hall sensors generate a pushing force of up to 800 N. The inner column profiles always move synchronously, while special gears ensure whisper-quiet operations. These lifting columns also excel in their versatility: they have an installation dimension of only 560 mm and a standard-compliant stroke length of 650 mm. The DD472.3 can be combined with the DB02 and DB03 control units. These can be programmed to meet customer requirements and feature ISP intelligent system protection.Read more at the DewertOkin website
