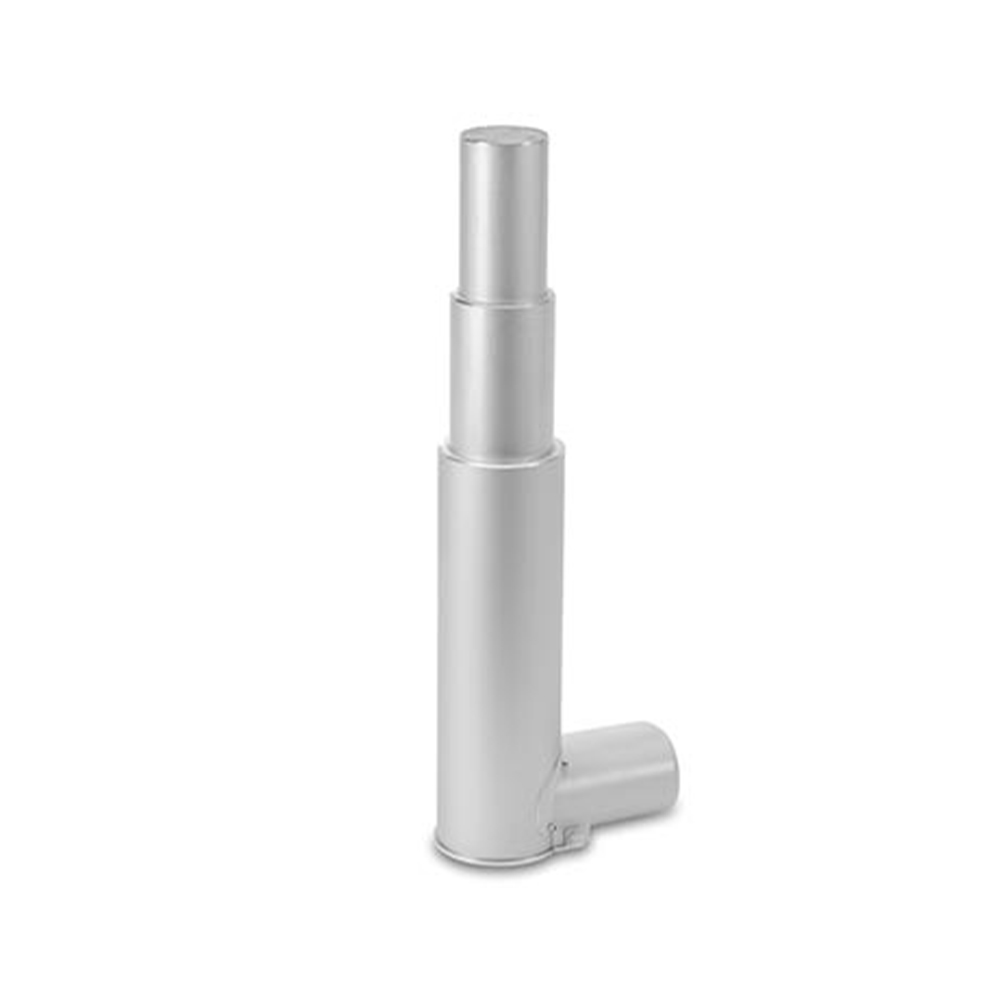

GAMMA COLONNE III

Extremely robust, quiet running. With high-quality linear guide. Optionally equipped with potentiometer. Designed for use in hospital and care beds.

Dynamic load capacity: max. 2000 N as central load; max. 350 N at 400 mm lever arm length
Static load: max. 1000 N at 400 mm lever arm length
Adjustment speed: max. 14.5 mm/sec. *
Stroke length: 400 mm
3-part aluminium column, 2-stage telescopic upwards, inner profiles telescope outwards
* depending on drive configuration at constant 24/29 V DC without load
