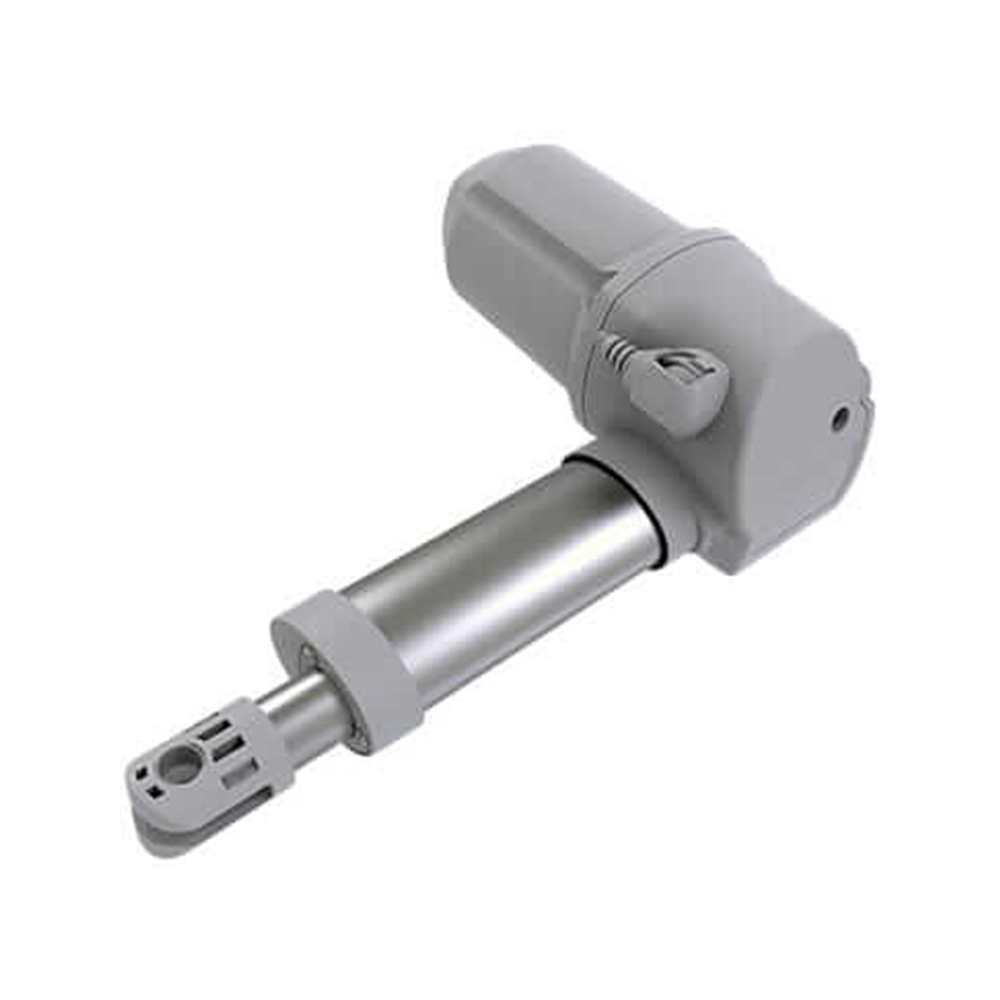

MEGAMAT 5

Power And Flexibility For Patient Lifters

MEGAMAT 5 users benefit from the high push and pull force of the drive. Its push force is as much as 8,000 Newton and its pull force is as much as 3,000 Newton. Its adjustment speed is 9.5 mm/s and its stroke length up to max. 400 mm (6,000 Newton push force) or 300 mm (8,000 Newton push force).

PERFECTLY SUITED FOR LIFTER APPLICATIONS
Further advantages of the MEGAMATS 5 include its compact and stable construction, the optimum price-performance ratio and manual emergency lowering. Thanks to its characteristics, the drive is especially well-suited for lifter applications. Nearly all the optional equipment for the MEGAMAT 2 are also available for the MEGAMAT 5.

ADVANTAGES AT A GLANCE
Compact and stable construction
High push and pull forces

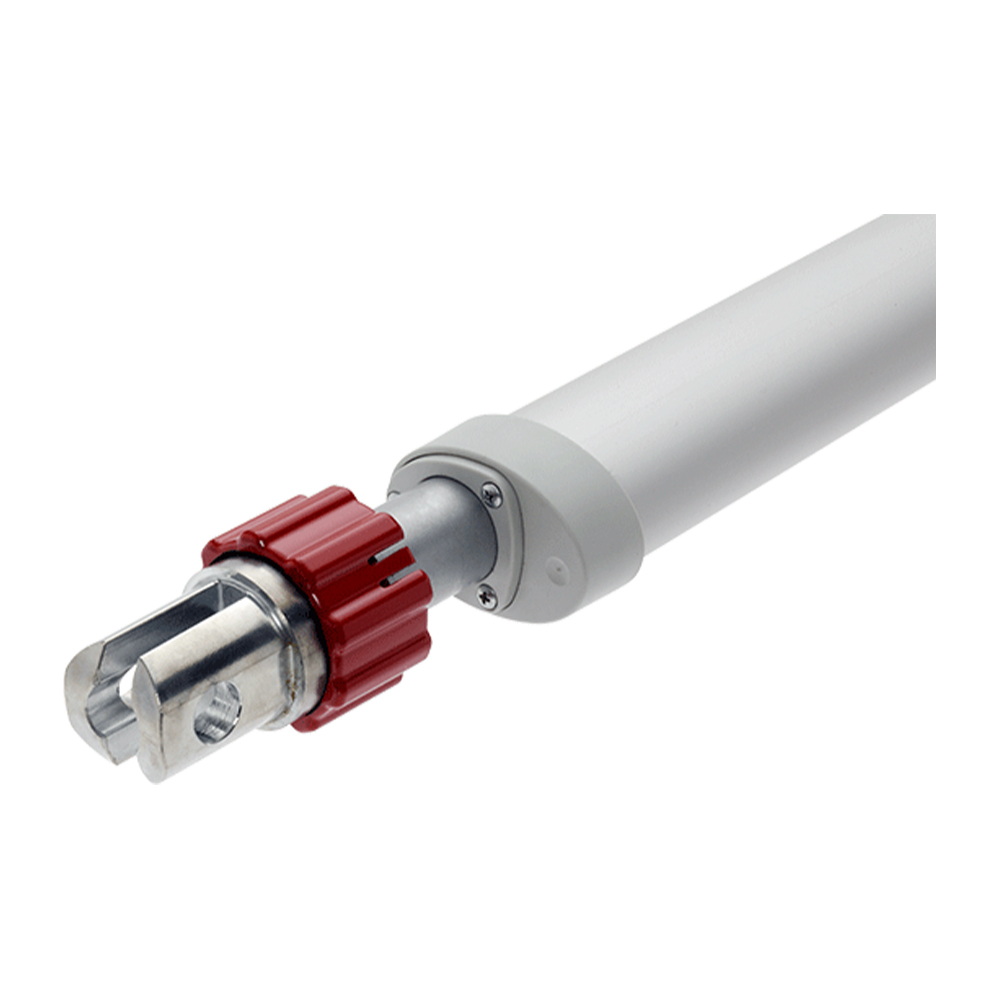

Manual emergency lowering
Optimum price-performance ratio
Especially well-suited for lifter applications
Load capacity: max. 8000 N push / max. 3000 N pull
Adjustment speed: max. 9.5 mm/sec. *
Stroke length: max. 400 mm (6000 N), max. 300 mm (8000 N)
Equipment options: safety limit switch, additional limit switch, safety spindle nut, Hall sensor
