Smooth-Running And Powerful

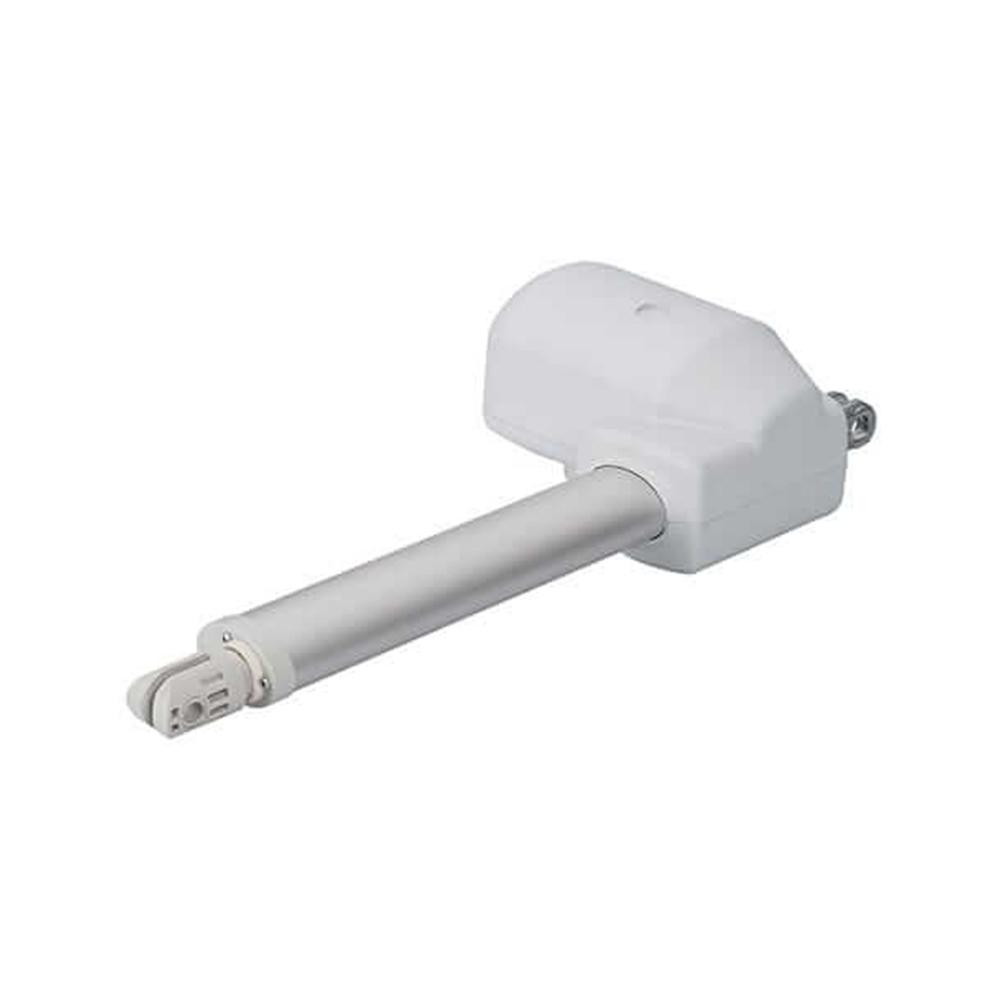

The advantages of the MEGAMAT 4 include its high level of performance, its compact and stable construction and its distinct smooth operation. The equipment also includes the manual emergency lowering. Its push force is as much as 6,000 Newton and its pull force is as much as 4,000 Newton. Its adjustment speed is 24 mm/s and its stroke length is up to max. 500 mm. Because the device is easy to clean, it is perfectly suited for demanding medical applications.
CUSTOMISED TO THE CUSTOMER
Thanks to its many configuration options, the MEGAMAT 4 is ideal for adapting to your individual requirements. On request, we can integrate a die-cast zinc lift pipe clevis, safety limit switch, additional limit switch, safety spindle nut and a Hall sensor.
ADVANTAGES AT A GLANCE
Compact and stable construction
Low noise level
Manual emergency lowering
Easy to clean
Many configuration options
Load capacity: max. 6000 N push / max. 4000 N pull
Adjustment speed: max. 24 mm/sec. *
Stroke length: max. 500 mm
Equipment options: stroke pipe clevis made of die cast zinc, safety limit switch, additional limit switch, safety spindle nut, Hall sensor
