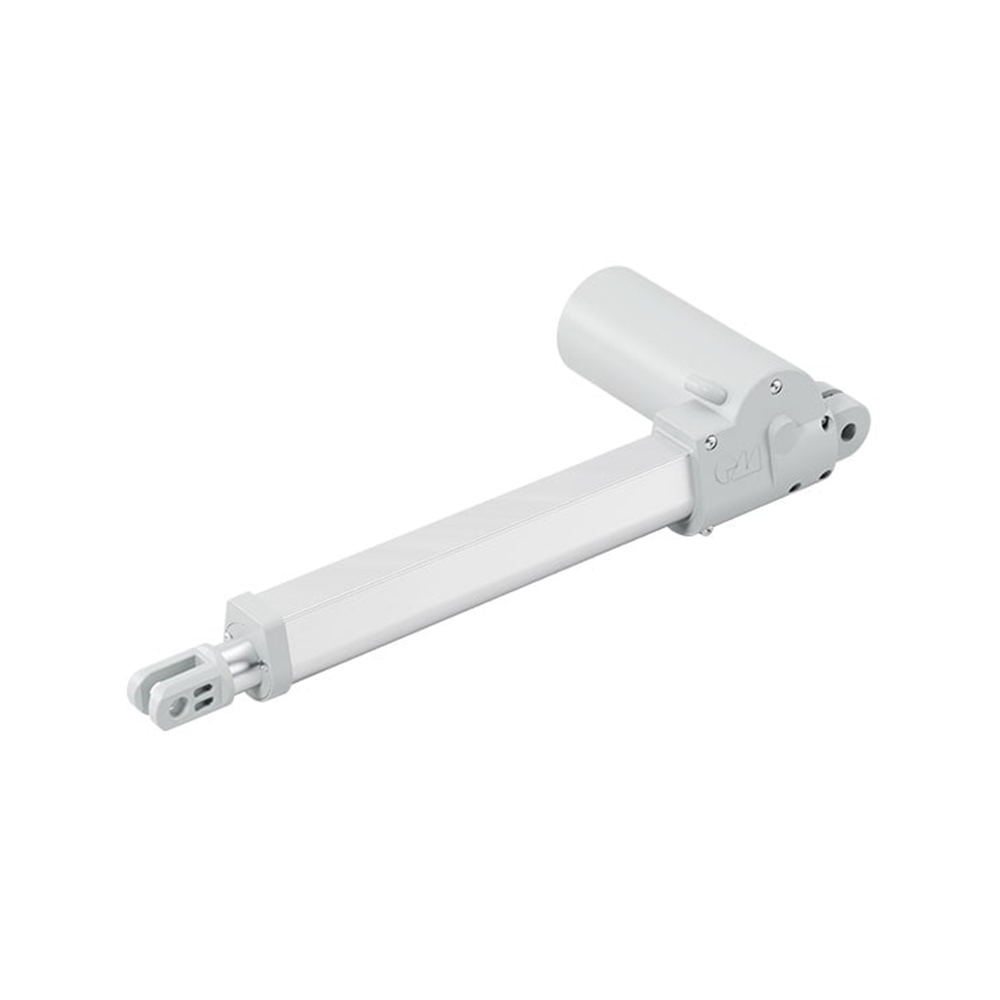

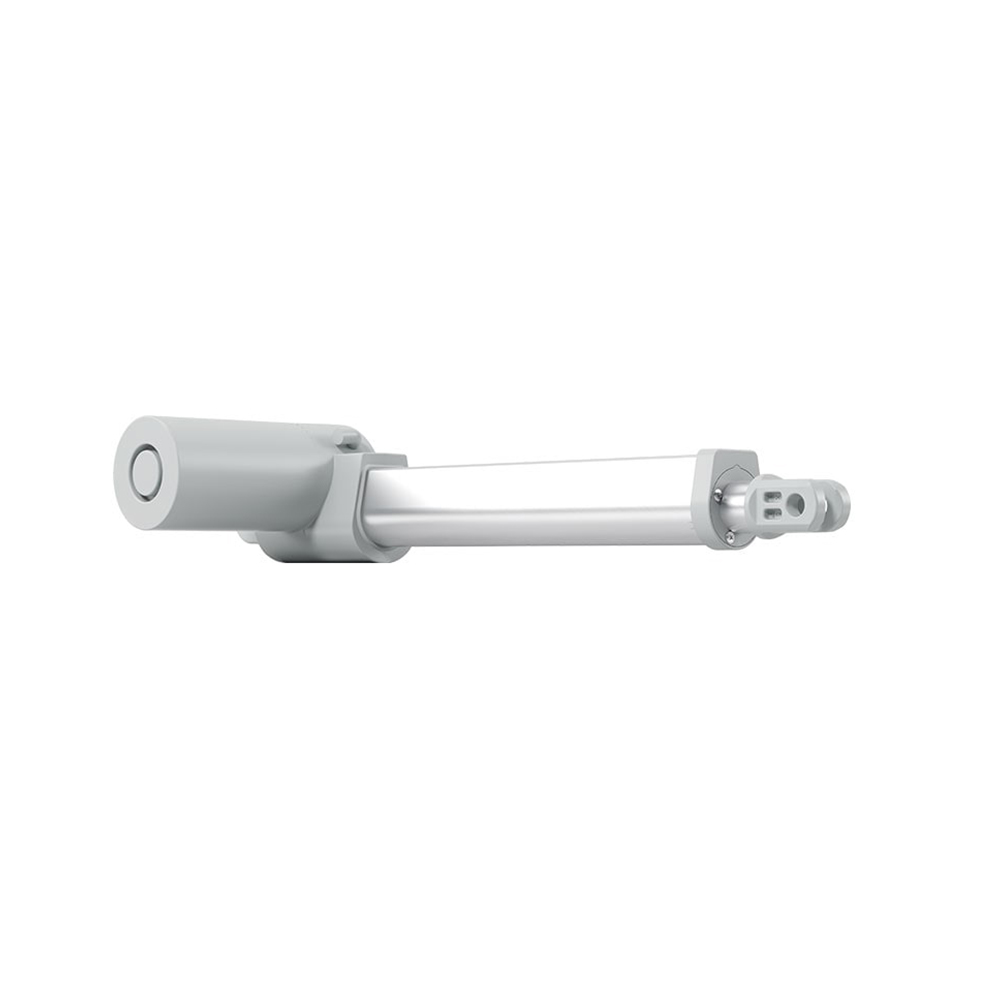

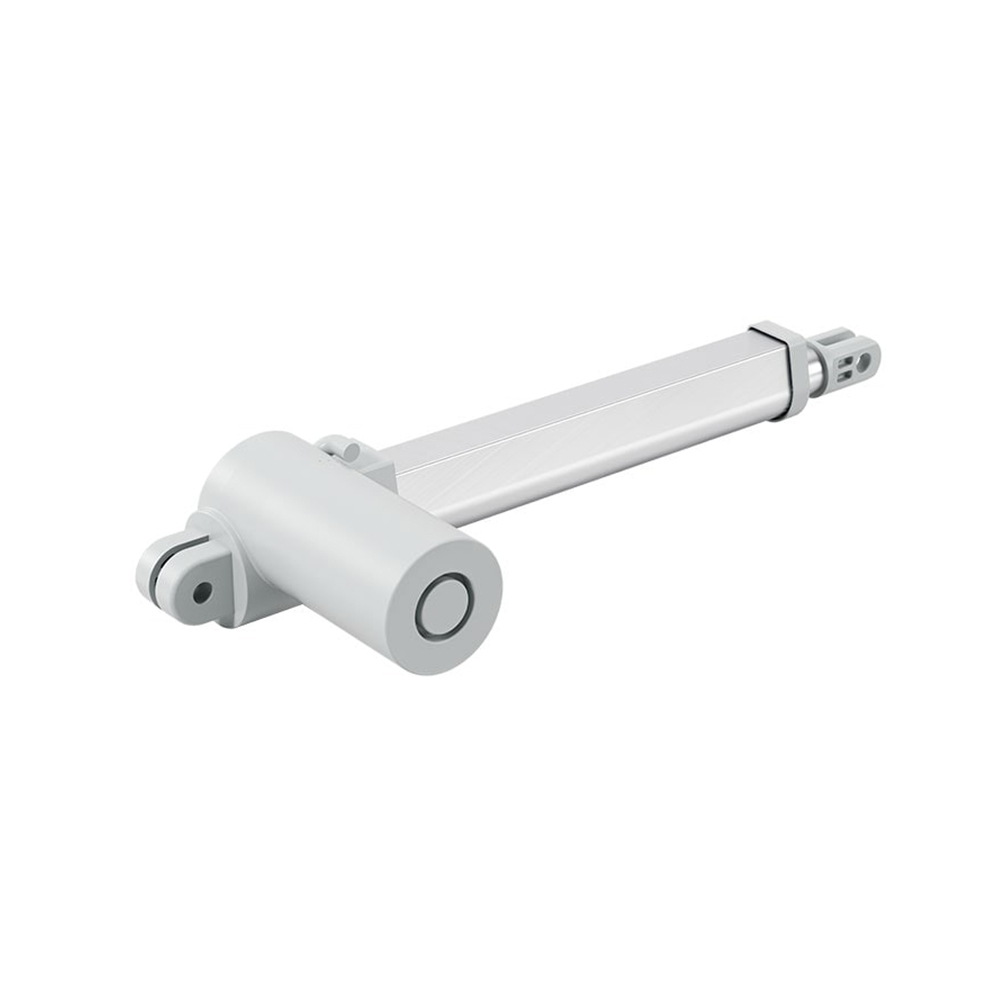

JLDQ.19M

The Cost-Efficient Single Drive With High Adjustment Forces

Reliable, powerful, yet also affordable: The JLDQ.19M single drive has an adjustment load of 6,000 N (pushing) or 3,000 N (pulling) at an adjustment speed of 42 mm/second. This makes it ideally suited for the most demanding applications. The compact installation dimension of 150 mm plus stroke (+- 2 mm) provides outstanding versatility for users. Maintenance-free motors make it a reliable option for front-lift beds and other products in the medical sector.

Compact drive for maintenance-free operations in medical applications
