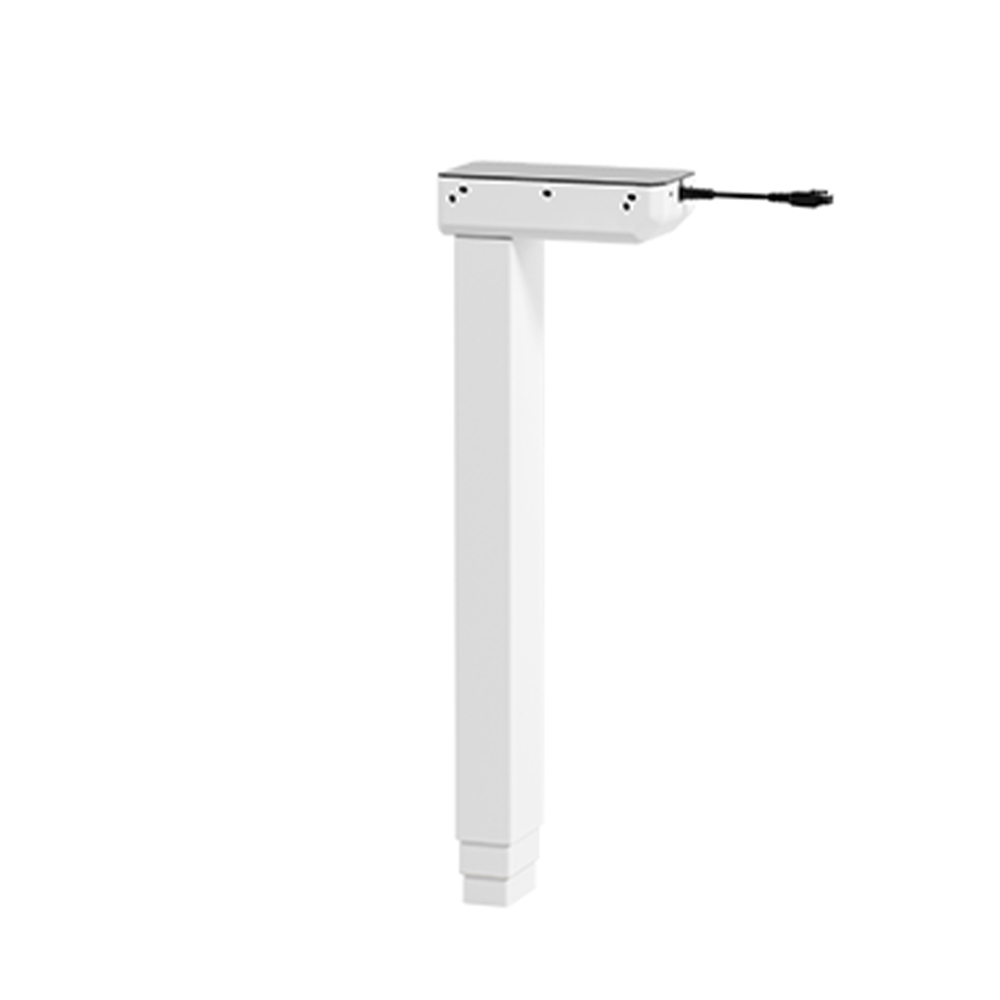

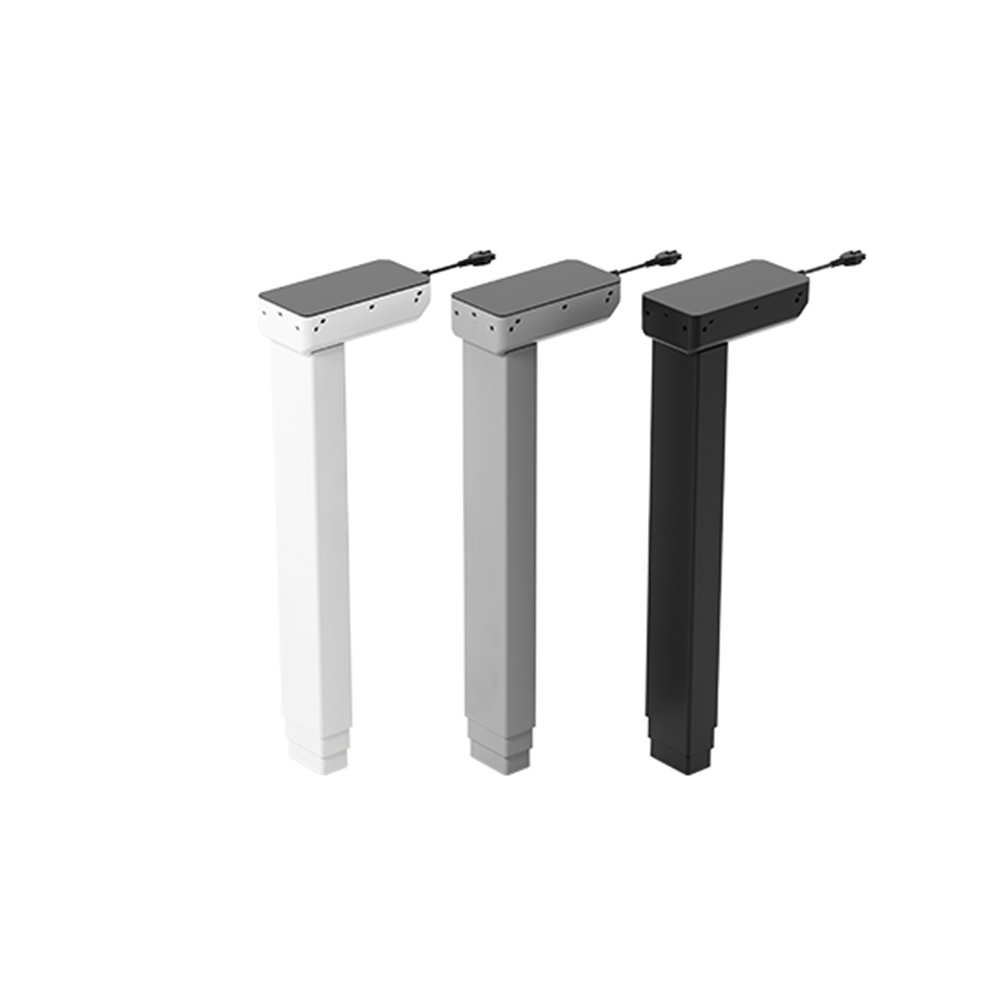

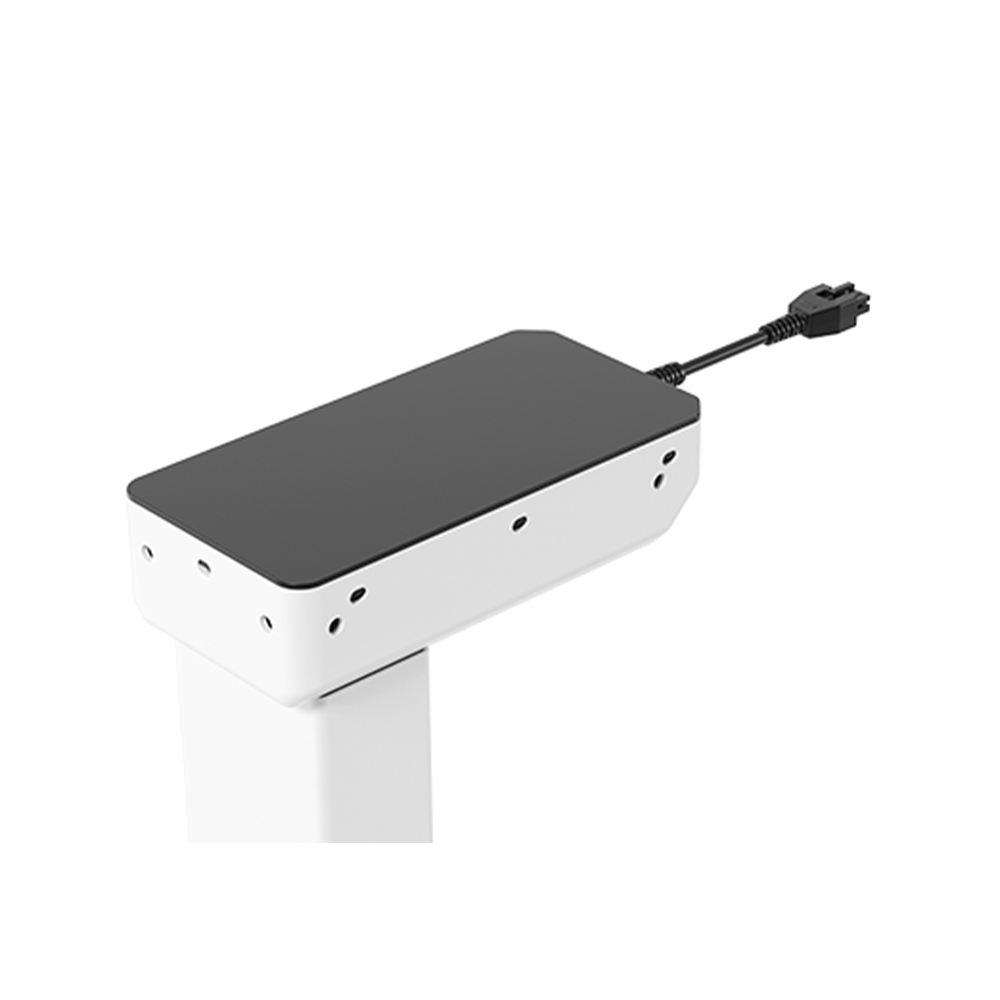

Rectangular Lifting Columns With Proven Drive Technology

Proven technology taken to the next level: Equipped with low-backlash sliding guides, the two-stage DD452.3 lifting columns are very sturdy and convenient for making height adjustments. Their outstanding stability is enhanced by the inverted push-out direction from top to bottom. And OKIN has not neglected the visual aspect either: This elegantly designed drive solution has smooth profiles without visible indentations or functional openings, so that it can be easily integrated into various table frame constructions. This gives furniture manufacturers a great deal of design freedom when developing their desks, in accordance with EN 527 and BIFMA X5.5.

Reliable lifting columns for modern furniture

The DD452.3 is equipped with powerful, maintenance-free 24-volt DC motors and two Hall sensors. This makes the lifting columns particularly powerful and generates a pushing force of up to 800 N. Despite this powerful performance, the lifting columns are always whisper quiet during operations. The column profiles always move synchronously. The versatile DD452.3 also has a very low installation dimension of 560 mm and a standard-compliant stroke length of 650 mm. OKIN also focuses on user-friendliness for the operations. These lifting columns are compatible with OKIN’s proven DB02, DB03, SMARTneo and COMPACTeco control units. They can be programmed to meet individual customer requirements and feature ISP intelligent system protection.
